Apple Push Notification Service
最近研究手机开发,iOS 的 APNS 真的是比 Android 先进很多啊~
虽然 Android 现在也有同样的东西了,但是在中国基本是废掉的…
APNS 原理和 iOS 设备上的实现,可以在下文中获得答案:(右上角可以切换成中文)
http://www.raywenderlich.com/3443/apple-push-notification-services-tutorial-part-12
但是,客户端实现了,服务端怎么实现了?
上面的教程中用 Php 实现了服务端的推送,代码也非常简单,原理也不难,就是实现 SSL Socket 并按照协议给苹果的服务器发送数据。
原文中的 Php 只用了不到50行就实现了。然后苦苦寻找,终于找到了 C# 版本和 Java 版本。
如果了解 APNS 原理后就会知道,iOS服务端只需要一个通用的 key(一个 App 一个 key),key 的密码,还有设备的 token(一个设备一个 token),就可以给设备发送推送了。
Push Sharp
.Net 实现:https://github.com/Redth/PushSharp
这个项目原名是 APNS Sharp ,作者后来准备做一个通用的项目,不仅可以支持 APNS,也可以支持各种设备的推送,所以取名 Push Sharp。
老的项目不再维护的,所以大家以后可以用新的项目。
用 nuget 下载 Push Sharp 后新建一个控制台项目,然后把 key 放在项目中。
代码如下:
[STAThread]
static void Main(string[] args)
{
//Create our service
PushService push = new PushService();
//Wire up the events
push.Events.OnNotificationSent += Events_OnNotificationSent;
push.Events.OnNotificationSendFailure += Events_OnNotificationSendFailure;
//Configure and start Apple APNS
var appleCert = File.ReadAllBytes(Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "key.p12"));
push.StartApplePushService(new ApplePushChannelSettings(false, appleCert, "xxxxx"));
push.QueueNotification(NotificationFactory.Apple()
.ForDeviceToken("xxxxxxxxxx")
.WithAlert("Alert Text!")
.WithSound("default")
.WithBadge(7));
Console.ReadKey();
}
private static void Events_OnNotificationSendFailure(PushSharp.Common.Notification notification, Exception notificationFailureException)
{
Console.WriteLine("发送失败!");
}
private static void Events_OnNotificationSent(PushSharp.Common.Notification notification)
{
Console.WriteLine("发送成功!");
}
是不是很简单?
APNS Java
Java 实现:https://github.com/notnoop/java-apns
Java 实现起来也非常简单,同样是用一个开源的类库。作者已经用 Maven 发布了,直接在 Maven 里搜索 com.notnoop.apns 即可。
实现代码如下:
public static void main( String[] args )
{
ApnsService service =
APNS.newService()
.withCert("key.p12", "xxxxx")
.withSandboxDestination()
.build();
String payload = APNS.newPayload().alertBody("Can't be simpler than this!").build();
String token = "xxxxxx";
service.push(token, payload);
}

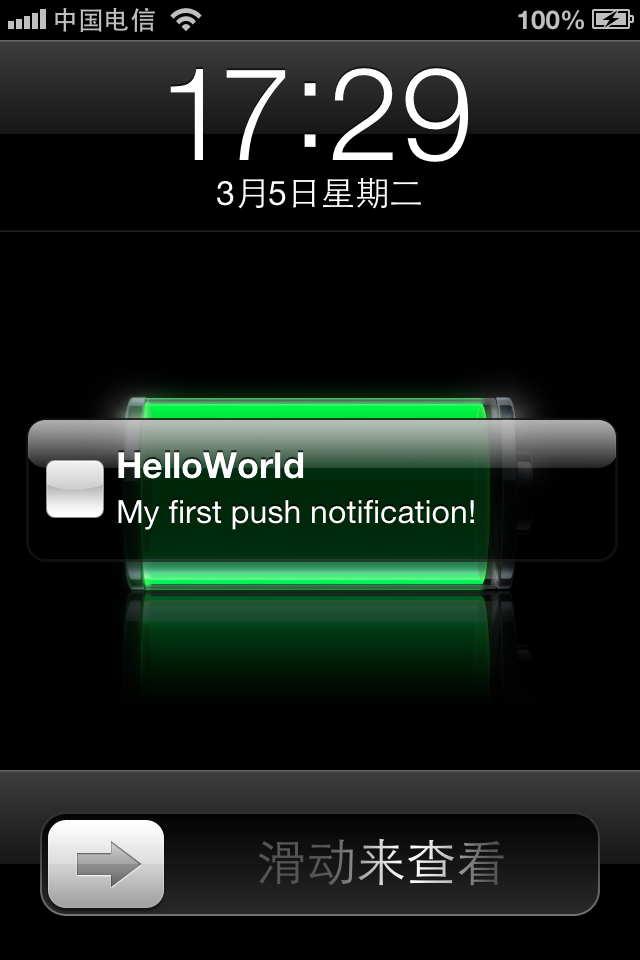

最终手机上也收到了推送!
Php 实现
最上面的那篇教程中有哦~
同样贴上代码:
<?php
// Put your device token here (without spaces):
$deviceToken = 'xxxxxx';
// Put your private key's passphrase here:
$passphrase = 'xxxx';
// Put your alert message here:
$message = 'My first push notification!';
////////////////////////////////////////////////////////////////////////////////
$ctx = stream_context_create();
stream_context_set_option($ctx, 'ssl', 'local_cert', 'ck.pem');
stream_context_set_option($ctx, 'ssl', 'passphrase', $passphrase);
// Open a connection to the APNS server
$fp = stream_socket_client(
'ssl://gateway.sandbox.push.apple.com:2195', $err,
$errstr, 60, STREAM_CLIENT_CONNECT|STREAM_CLIENT_PERSISTENT, $ctx);
if (!$fp)
exit("Failed to connect: $err $errstr" . PHP_EOL);
echo 'Connected to APNS' . PHP_EOL;
// Create the payload body
$body['aps'] = array(
'alert' => $message,
'sound' => 'default'
);
// Encode the payload as JSON
$payload = json_encode($body);
// Build the binary notification
$msg = chr(0) . pack('n', 32) . pack('H*', $deviceToken) . pack('n', strlen($payload)) . $payload;
// Send it to the server
$result = fwrite($fp, $msg, strlen($msg));
if (!$result)
echo 'Message not delivered' . PHP_EOL;
else
echo 'Message successfully delivered' . PHP_EOL;
// Close the connection to the server
fclose($fp);
